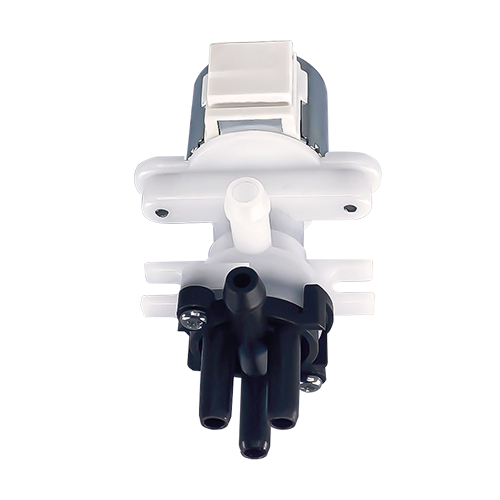

KORB3AM 5∅ FLOW CONTROL VALVE
페이지 정보
작성자 최고관리자 조회Lookup 17,921 작성일 20-12-31 11:40본문
INTRODUCTION
Adjusts the flow rate while supplying cleaning water to the nozzle or bidet flow path.
SPEC
Rated pressure : 1.0 Kgf/cm2
Flow rate : 400~800 ccpm
Allowable pressure : 2.0Kgf/cm2
Allowable leakage : 1.0 ccpm
Size : 35*42*63
