INTRODUCTION

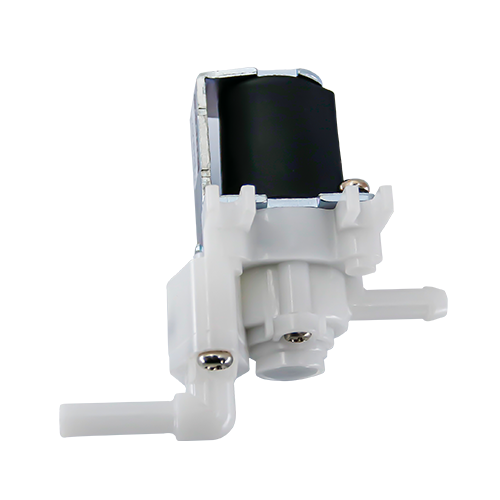

This is a pressure reducing valve for household water purifiers and bidets.

The main pressure is controlled by controlling the pilot flow, so the size is small and it is convenient to apply to equipment.

SPEC

 Rated pressure : 1.0 Kgf/cm2

 Pressure precision : ±0.1Kgf/cm2

 Flow rate : 1000cc/min.

 Pressure control range : 0.7~1.5 Kgf/cm2

 Size : 35*42*63
