INTRODUCTION

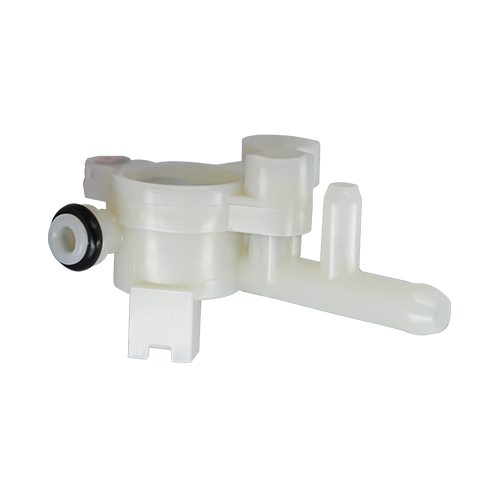

This measures the flow of the water purifier and bidet.

The flow rate signal is output as pulse, and the flow rate is converted by counting the pulse generated per unit time.

SPEC

 Flow measurement range : 200~1000ccpm

 Measurement precision : ±3%

 PULSE RATE

-TYPE 1 : 88PULSE/L

-TYPE 2 : 155PPL

 Allowable pressure : 7.0Kgf/cm2
